MPO

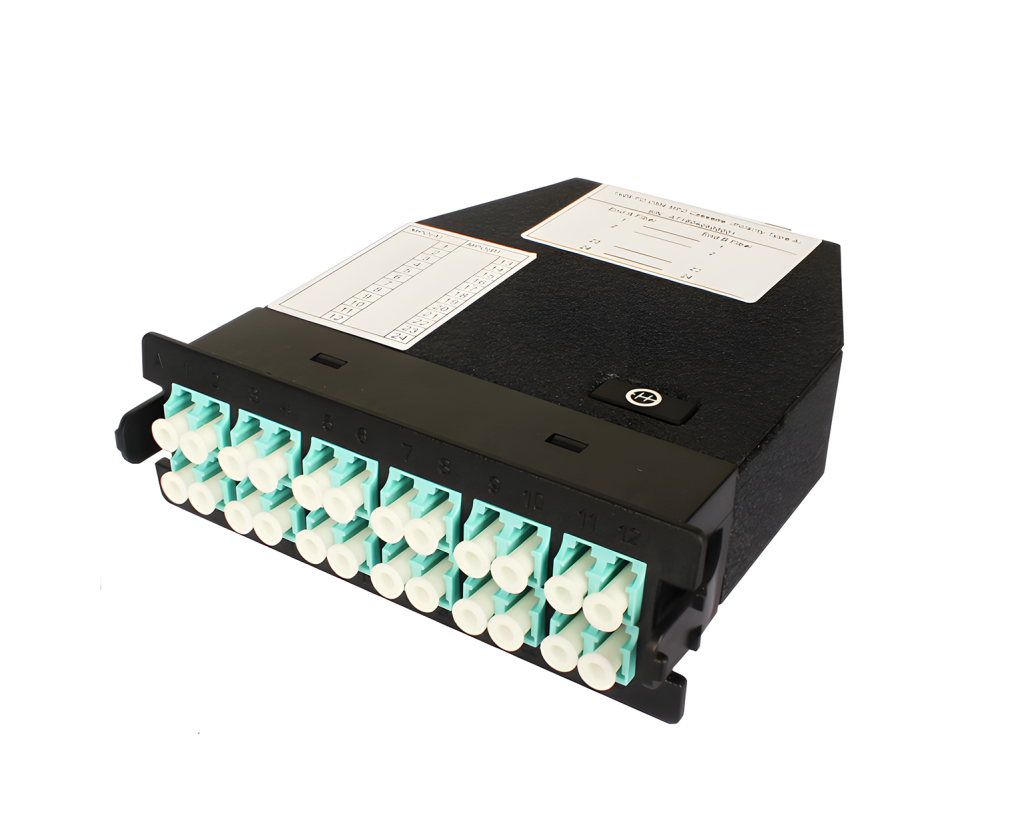

HydraX™ MPO Cassettes

Hermesys HydraX™ Fast-Plug MPO cassettes are designed for high density Data Center solutions. MPO cassettes provides secure transition between MPO and LC or SC connectors. MPO cassettes are designed to fit in the rack mount HydraX™ high density MPO panel that accepts up to 4 MPO cassettes.

Hubungi Penjualan

Spesifikasi Teknis

Parameter Detail Spesifikasi

Type of Fibre G652D, OM1, OM2, OM3, OM4, G655, G657A1, G657A2, G657B1, G657B2, G657B3

Type of Connector Model MPO

Connector Type 12 or 24 Fibre MPO Male

Front Interface Connector Type LC Duplex, SC Duplex (APC/UPC)

Material Plastic & Aluminum

Durability 200 Matings

Polarity of Trunk Cable A, B, C, P, Low Loss

Temperature Range -20°C to +60°C

Insertion Loss MM ≤ 0.50 dB (Standard), 0.35 dB (Premium); SM ≤ 0.75 dB (Standard), 0.50 dB (Low Loss)

Return Loss OM3/OM4 ≥ 23 dB; OS2 PC ≥ 35 dB (APC ≥ 45 dB)

Weight Nom. 0.45 kg

Color Black
